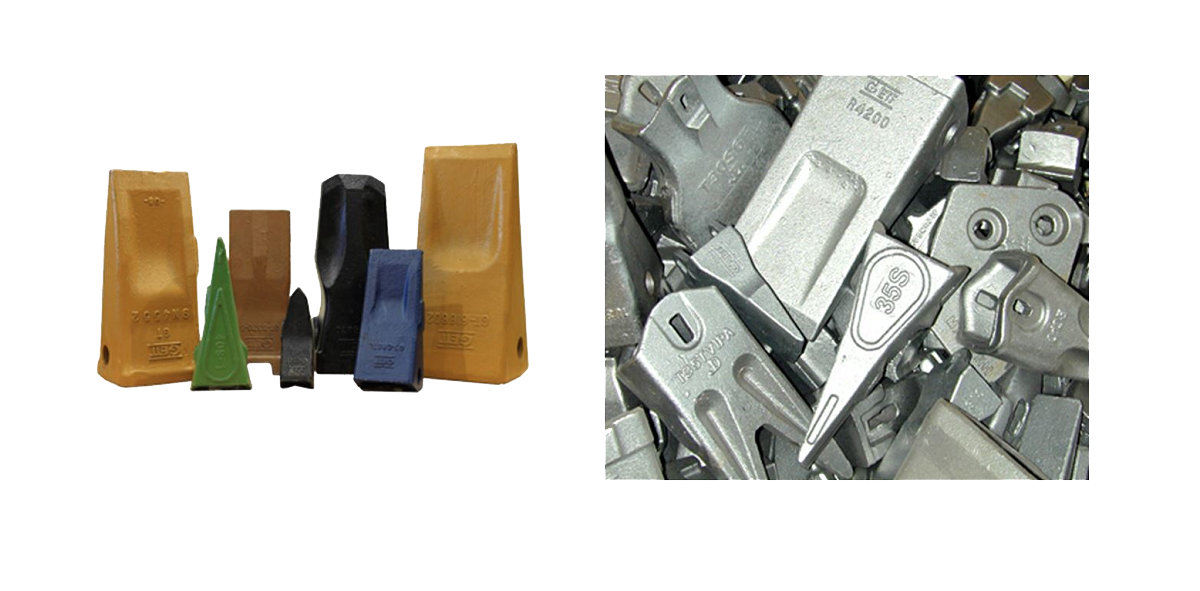

Ground Engaging Tool

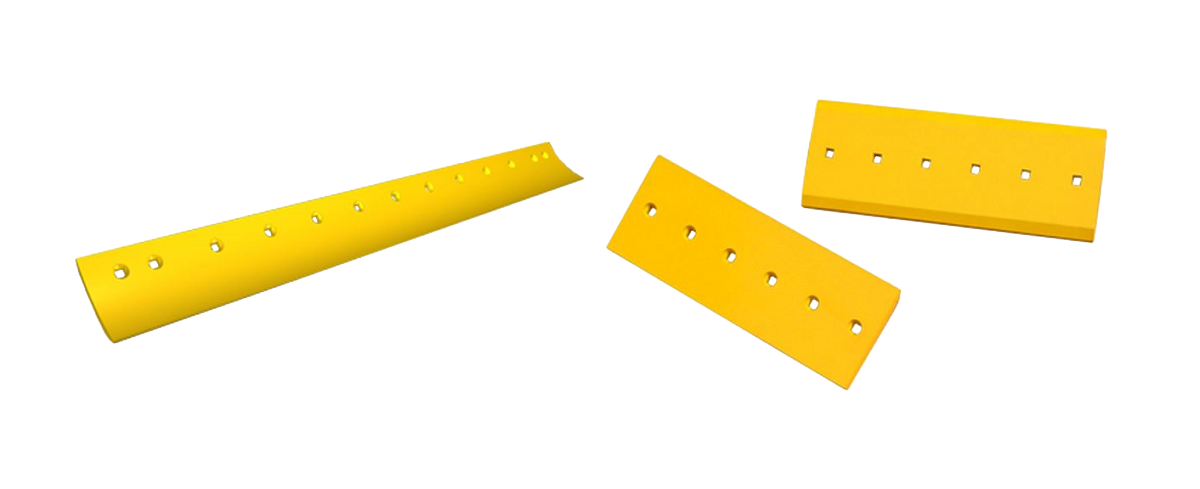

Ground Engaging Tools, Tooth, Adapter, Side Cutter, Ripper Tooth, Cutting Edge, End Bits, Bucket, Ripper, Protector, etc.
pin_drop
Our Office Location
Paju-City, Seoul
Republic of Korea
phone
Call us Directly
+82 (707) 858 2730 ~ 31
Mon - Fri, 8:30am - 5:30pm
Sat, 9:00am - 12:00pm
business_center
Company Details
ERG Korea Inc.
Office Locations
| Model | Part No | Item Description | Weight / KG | Remarks |
| DX55 | 2713-9051 | TIP | 1.1 | - |
| DX55 | K9003877A | TIP | 1.1 | - |
| DX80R | 2713-9026 | TIP | 2.2 | 25S |
| DX80R | 2713-6012B | TIP | 2.2 | 25S |
| S130 | 2713-0215 | SIDE PINNED TIP | 3.8 | 215 |
| S130-3 | 2713-9046 | SIDE PINNED TIP | 4.5 | PC200 |
| S130-5 (OLD) | 2713-1221 | SIDE PINNED TIP | 4.4 | 130-5 |
| S140-5 (NEW) | 713-00057/C | SIDE PINNED TIP | 4.1 | 140-5 |
| S140-5 (NEW) | K9005347 | SIDE PINNED TIP | 3.85 | 140-5 |
| S170/220-3 | 2713-9041 | SIDE PINNED TIP | 6.4 | 225 |
| S170/220-5/ S225LC-V (NEW) |
K1000344 | SIDE PINNED TIP | 6.2 | 220-5 |
| S170/220-5/ S225LC-V (NEW) |
2713-1217 | SIDE PINNED TIP | 5.7 | 220-5 |
| S170/220-5/ S225LC-V (NEW) |
K9005769 | SIDE PINNED TIP | 6 | 220-5 |
| S170/220-5/ S225LC-V (NEW) |
K1038006A | SIDE PINNED TIP | 6 | 220-5 |
| S170/220-5/ S225LC-V (NEW) |
K9005349 | SIDE PINNED TIP | 6 | 220-5 |
| S280/320/ 330-3 |
2713-9038 | SIDE PINNED TIP | 7.4 | 235 |
| S290/S300/ 330-5 (NEW) |
713-00054A | SIDE PINNED TIP | 8.1 | 300-5 |
| S290/S300/ 330-5 (NEW) |
GT-S300RC | SIDE PINNED TIP | 8.1 | - |
| S360/370-5 (S330-5) |
713-00032/2713-1234 | SIDE PINNED TIP | 10.2 | S370-V(P/W : 240) |
| S360/370-5 (S330-5) |
K9005771 | SIDE PINNED TIP | 10.2 | S370-V(P/W : 240) |
| S320/400-3 | 2713-9044 | SIDE PINNED TIP | 8.8 | 240 |
| S450-3 | 2713-9040 | SIDE PINNED TIP | 18.7 | 245 |
| S400/S470/S500-5/ DX420LC (NEW) |
K1004145/B | SIDE PINNED TIP | 18.1 | S470-5(P/W : S400-V) |
| S400/S470/S500-5/ DX420LC (NEW) |
2713-1216 | SIDE PINNED TIP | 18.1 | S470-5(P/W : S400-V) |
| S400/S470/S500-5/ DX420LC (NEW) |
2713-1236 | SIDE PINNED TIP | 18.8 | S470-5(P/W : S400-V) |
| S130 | 2713-9215 | SIDE PINNED ADAPTER | 8.2 | 215 |
| S130-3 | 2713-9046 | SIDE PINNED ADAPTER | 6.6 | PC200 |
| S130/140-5 | 2713-1222 | SIDE PINNED ADAPTER | 7.9 | 130-5 |
| S130/140-5 | 2713-1222A | SIDE PINNED ADAPTER | 6.3 | 130-5 |
| S130/140-5 | K9005348 | SIDE PINNED ADAPTER | 6.3 | 130-5 |
| S170/220-3 | 2713-9042 | SIDE PINNED ADAPTER | 10 | 225 |
| S170/220-5/ DX225LC |
2713-1218/A | SIDE PINNED ADAPTER | 8.6 | 220-5 |
| S170/220-5/ DX225LC |
K9005350 | SIDE PINNED ADAPTER | 8.6 | 220-5 |
| S280/320-3 | 2713-9037 | SIDE PINNED ADAPTER | 13.2 | 235 |
| S290/300/ 330-5 |
2713-1220 | SIDE PINNED ADAPTER | 12.4 | 290-5 |
| S290/300/ 330-5 |
K9005352 | SIDE PINNED ADAPTER | 12.4 | 290-5 |
| S360/370-5/ DX340LC |
713-00033/A | SIDE PINNED ADAPTER | 17.2 | 360-5 |
| S320/400-3 | 2713-9043 | SIDE PINNED ADAPTER | 16 | 240 |
| S450-3 | 2713-9039 | SIDE PINNED ADAPTER | 31.1 | 245 |
| S400/470/500-5 | 2713-1237 | SIDE PINNED ADAPTER | 26.8 | 470-5 |
| S130 | 215PN | PIN | 0.2 | 215 |
| S170/220 | 2705-9012 | PIN | 0.2 | 225 |
| S170/220-5 | 2705-1020 | PIN | 0.2 | 220-5 |
| S280/320 | 2705-0235 | PIN | 0.3 | 235 |
| S290/300/ 330-5 |
2705-1021 | PIN | 0.4 | 290 |
| S320/400 | 2705-9013 | PIN | 0.4 | 240 |
| S360-5 | 705-00006 | PIN | 0.4 | 240 |
| S450 | 2705-9011A | PIN | 0.6 | 245 |
| S400/470/ 500-5 |
2705-1034 | PIN | 0.6 | 245 |
| S400/470/ 500-5 |
2705-1035 | PIN | 0.6 | 245 |
| S130 | 215WS | WASHER | 0.1 | 215 |
| S130/170/220/ 280/320 |
2114-9008 | WASHER | 0.1 | 225 |
| S220-5 | 2114-1848A | WASHER | 0.1 | S220-5 |
| S290/300/ 330-5 |
2705-1021 | WASHER | 0.1 | 290 |
| S400 | 2114-9010 | WASHER | 0.1 | 240 |
| S450-3/S400/450/ 470/500-5 |
2114-9002 | WASHER | 0.1 | 245 |
| S50/55 | 2713-1045/40 | SIDE CUTTER | 2.1 | 2713-6050/1 |
| S130/170/220 | 2713-1059/60 | SIDE CUTTER | 13 | S220 (EX200) |
| S130-5 | 2713-1228/9 | SIDE CUTTER | 7.8 | S130-5 |
| S280/320/ 330-3 |
2713-1047/8 | SIDE CUTTER | 15.8 | S280 (EX300) |
| S290/300/ 330/360-5 |
2713-6034A/35A | SIDE CUTTER | 16.8 | S300-V(EX300) |
| S400/S450/ S4705/S500-5 |
2713-1240/41 | SIDE CUTTER | 21 | |
| S400/S450-3 | 2713-1090/1 | SIDE CUTTER | 20.7 | S400 (EX400) |
| MEGA200 CENTER | 4713-4004A/B | LOADER-TOOTH | 5.3 | - |
| MEGA200 LH | 4713-4004A/B | LOADER-TOOTH | 6.8 | - |
| MEGA200 RH | 4713-4000A/B | LOADER-TOOTH | 6.8 | - |
| MEGA300 CENTER | 2983342M92 | LOADER-TOOTH | 19 | - |
| MEGA300 LH | 4713-1116 | LOADER-TOOTH | 22 | - |
| MEGA300 RH | 4713-1117 | LOADER-TOOTH | 22 | - |
| MEGA400 CENTER | 4713-1130 | LOADER-TOOTH | 20 | - |
| MEGA400 LH | 4713-1111 | LOADER-TOOTH | 30.5 | - |
| MEGA400 RH | 4713-1132 | LOADER-TOOTH | 31.5 | - |
| S50/55 | 2713-9010 | TIP ESCO (VERTICAL) TYPE |
1.1 | 02 (18S) |
| S80 | 2173-6012 | TIP ESCO (VERTICAL) TYPE |
2.2 | 03 (25S) |
| S130 | 2718-1001 | TIP ESCO (VERTICAL) TYPE |
2.7 | 05 (DH05 : 30S |
| S220LC | 2713-9029 | TIP ESCO (VERTICAL) TYPE |
4.7 | 08 (35S) |
| S280/320 | 2713-9003 | TIP ESCO (VERTICAL) TYPE |
7.3 | 10 (40S) |
| S50/55 | 2713-9009 | ADAPTER ESCO (VERTICAL) TYPE |
2 | 2 |
| S80 | 2713-6013 | ADAPTER ESCO (VERTICAL) TYPE |
3.5 | 3 |
| S130 | 2713-9001 | ADAPTER ESCO (VERTICAL) TYPE |
7.3 | 5 |
| S220LC | 2713-1081 | ADAPTER ESCO (VERTICAL) TYPE |
9.7 | 8 |
| S280/320 | 2713-9002 | ADAPTER ESCO (VERTICAL) TYPE |
12.5 | 10 |
| S50 | 2705-9005 | LOCK PIN | 0.1 | 2 |
| S50 | 2705-9005S | LOCK PIN | 0.1 | 2 |
| S80/S130 | 2123-9001 | LOCK PIN | 0.1 | 5 |
| S220LC | 2705-1001 | LOCK PIN | 0.1 | 8 |
| S280/320 | 2116-9001 | LOCK PIN | 0.2 | 10 |
| S50 | 2705-9006 | RUBBER LOCK | 0.1 | 2 |
| S80/130 | 2705-9008 | RUBBER LOCK | 0.1 | 5 |
| S220/280/320 | 2705-1002 | RUBBER LOCK | 0.1 | 8 |
| S50 | 2705-9005ST | PIN/WASHER SET | 0.2 | 02 SET |
| S170/220-5 | 2705-1020ST | PIN/ WASHER SET (2705-1020,2114-1848A) |
0.3 | 220-5 SET |
| S400/470/500-5 | 2705-1034ST | PIN/WASHER SET | 0.7 | 245 SET |
| DX225LC | 713-00024 | TIP-DART BUCKET | 5.7 | |
| S330LC-5 | 713-00034/A | TIP | 10.9 | |
| DX420LC | 713-00028 | TIP | 17 | |
| R45/50/55 | 952-29001 | ADAPTER | 2 | 2 |
| R45/50/55 | 952-36001 | TIP | 1.1 | S55-V |
| R45/50/55 | 952-40001 | LOCK PIN | 0.1 | PIN 02 |
| R45/50/55 | 952-40001A | LOCK PIN | 0.1 | PIN 02 |
| R45/50/55 | 952-50001 | RUBBER LOCK | 0.1 | PIN/R 02 |
| R45/50/55 | 952-50001A | RUBBER LOCK | 0.1 | PIN/R 02 |
| R45/50/55 | 61M5-30270 | SIDE CUTTER | 3.2 | R500 |
| R45/50/55 | 61M5-30280 | SIDE CUTTER | 3.2 | R500 |
| R220 | 61Q6-31310 | TIP | 6.95 | - |
| R220 | 61Q6-31320 | ADAPTER | 10.15 | - |
| R130/200/210 | E161-3017 | ADAPTER | 7 | HX80 |
| R210-7 | 61N6-31320 | ADAPTER (NEW) | 10 | R2200 |
| R130/200/210 | E161-3027 | TIP | 4.4 | HX80 |
| R210-7 | 61N6-31310 | TIP (NEW) | 7.4 | R2200 |
| R130/200/210 | E161-3035 | PIN | 0.3 | 225 |
| R130/200/210 | S411-180002 | RETAINER | 0.1 | 225 |
| R130/200/210 | 61E3-3033 | SIDE CUTTER | 11.2 | HX60 |
| R130/200/210 | 61E3-3034 | SIDE CUTTER | 11.2 | HX60 |
| R290/320 | E262-3027 | ADAPTER | 12.5 | 235 |
| R-290/320 | E262-3046 | TIP | 7.8 | 235 |
| R290-7 | 61N8-31310 | TIP (NEW) | 9.6 | R3000 |
| R290-7 | 61N8-31320 | ADAPTER (NEW) | 15.4 | R3000 |
| R290/320 | E262-5004 | PIN | 0.3 | 235 |
| R290/320 | 61E5-11150 | RETAINER | 0.1 | 225 |
| R200/210/ 290/320 |
63E1-3533 | SIDE CUTTER | 19.2 | HX100 |
| R200/210/ 290/320 |
63E1-3534 | SIDE CUTTER | 19.2 | HX100 |
| R360/420/ HX160 |
61E7-0100 | ADAPTER | 16.7 | HX4200 |
| R360-7 | 61NA-31320 | ADAPTER (NEW) | 20.4 | R3600 |
| R380 | 61QA-31310 | TOOTH | 13.4 | - |
| R380 | 61QA-31320 | ADAPTER | 18.2 | - |
| R360/420/ HX160 |
61E7-0101 | TIP | 11.8 | HX4200 |
| R360-7 | 61NA-31310 | TIP (NEW) | 13 | R3600 |
| R360/420/ HX160 |
61E7-0105 | PIN | 0.3 | 240 |
| R360/420/ HX160 |
61EH-11150 | RETAINER | 0.1 | 240 |
| R450 | 61E7-04500 | ADAPTER (GENERAL, ROCK) |
18.7 | C235 |
| R450 | 64E7-01990 | ADAPTER (ROCK) |
31.1 | 245 |
| R450-7/R500 | 61NB-31320 | ADAPTER (NEW) |
28.2 | R4500 |
| R450 | 61E7-04610 | TIP (GENERAL, ROCK) |
12.2 | C235 |
| R450 | 64E7-02000 | TIP (ROCK) | 18.7 | 245 |
| R450-7/R500 | 61NB-31310/BG | TIP (NEW) | 28 | R4500 |
| R470 | 66NB-31310 | TIP | 19.3 | - |
| R470 | 66NB-31320 | ADAPTER | 31 | - |
| R520 | 62NB-31320 | ADAPTER | 28 | - |
| HL17/740/750 | 61L3-0169 | CE-TOOTH | 11.5 | HL15 |
| HL17/740/750 | 61L3-0170 | CO-TOOTH LH | 15.8 | HL15(S) |
| HL17/740/750 | 61L3-0171 | CO-TOOTH RH | 15.8 | HL15(S) |
| HL25/35/ 760/770 |
61L1-3022 | CE-TOOTH | 21.2 | HL35 |
| HL25/35/ 760/770 |
61L1-3028 | CO-TOOTH LH | 24.7 | HL35(S) |
| HL25/35/ 760/770 |
61L1-3029 | CO-TOOTH RH | 24.7 | HL35(S) |
| R5000LC | 61EQ-30460 | PIN | 0.6 | R5000-7 |
| R5000LC | 61EQ-30510 | WASHER | 0.2 | R5000-7 |
| SE22 | 1070-23200 | TIP | 2.8 | SE22 |
| SE40/ MX40W | 1070-05031 | TIP | 2.2 | MX40W |
| SE50/ MX55/ EC55 |
1071-01840 | TIP | 1.1 | S55-V |
| EC55B | 15615411 | TIP | 1.1 | S55-V |
| SE130/ MX135 | 1171-00480 | TIP | 4 | MX135 |
| EC140 (NEW) | 14527863 | TIP | 4.2 | EC140 |
| SE210/ MX8/ MX222 |
1070-61310 | TIP (8240-00360) |
5.1 | 08STL |
| SE210/ MX8/ MX222 |
8240-00360 | TIP (8240-00360) |
5.1 | 08STL |
| EC210/EC240/ MX225 |
1171-00045 | TIP | 5 | MX225 |
| SE280/ MX292/ MX10-2 |
1071-00460 | TIP | 6.4 | C225 |
| EC290/ MX295 | 1171-01371 | TIP | 8 | EC290 |
| EC290/ MX295 | 14343128 | TIP( | 7.6 | |
| SE350/ MX14/ MX352 |
1071-00630 | TIP (GENERAL) | 11.9 | MX14 |
| EC360/ EC460 | 1171-01910 | TIP | 12.2 | EC460 |
| EC360/ EC460 | 14540728 | TIP( | 11.7 | EC460 |
| EC360B | 14536800 | TIP | 14.2 | - |
| EC460B | 14537843 | TIP(NEW) | 18.1 | EC460B |
| SE450/ MX452 | 1071-01760 | TIP (ROCK) | 18.7 | 245 |
| SE40/ MX40W | 1070-05021 | ADAPTER | 3 | MX40W |
| SE50/ MX55/ EC55 |
1071-01850 | ADAPTER | 2 | 2 |
| SE130/ MX135 | 1171-00470 | ADAPTER | 6.6 | MX135 |
| EC140(NEW) | 1452-7865 | ADAPTER | 5.56 | EC140 |
| SE210/ MX8/ MX222 |
1070-61450 | ADAPTER | 7.1 | MX8 |
| EC210/ EC240/ MX225 |
1171-00031 | ADAPTER | 9 | MX225 |
| MX10-2 | 1071-00800/ 1071-130 |
ADAPTER | 10.6 | MX10-2 |
| SE280/MX292 | 1071-008001 | ADAPTER | 12.2 | 235 |
| EC290/MX295 | 1171-01620 | ADAPTER | 12.8 | EC290 |
| SE350/ MX14/ MX352 |
1071-00620 | ADAPTER | 20.9 | MX14 |
| EC360/ EC460 | 1171-01900 | ADAPTER | 32.3 | EC460 |
| EC360B | 14556464 | ADAPTER | 24 | - |
| EC460B | 14537826 | ADAPTER | 31.8 | EC460B |
| SE450/ MX452 | 1071-01750 | ADAPTER | 31.1 | 245 |
| SE130/MX135/EC140/ EC210/EC240 |
1171-00171 | SIDE CUTTER LH |
10.9 | MX135 |
| SE130/MX135/EC140/ EC210/EC240 |
1171-00181 | SIDE CUTTER RH |
10.9 | MX135 |
| 210/ SE280/ MX8/ MX222/ MX292/ MX1 |
R0104090 | SIDE CUTTER LH |
11.4 | MX8 |
| 210/ SE280/ MX8/ MX222/ MX292/ MX1 |
R0104091 | SIDE CUTTER RH |
11.4 | MX8 |
| EC290 | 1171-01170 | SIDE CUTTER LH |
16.3 | EC290 |
| EC290 | 1171-01180 | SIDE CUTTER RH |
16.3 | EC290 |
| SL15/ LX233 | 2071-00690/ 7736147 |
CENTER TOOTH | 7 | SL15( C) |
| SL15/ LX233 | 2071-00700/10 | CONER TOOTH (LH/RH) | 28 | SL15(S) |
| SL20/ LX373 | 2071-01070/ 7736147 |
CENTER TOOTH | 16.9 | SL20 |
| SL20/ LX373 | 2071-01080/90 | CONER TOOTH (LH / RH) |
25.5 | SL20(S) |
| J200 | 1U3201 | TIP-SHORT | 1.2 | - |
| J250 | 1U3251 | TIP-SHORT | 2.7 | - |
| J300 | 1U3301 | TIP-SHORT | 3.9 | - |
| J350 | 1U3351 | TIP-SHORT | 5.6 | - |
| J400 | 7T3401 | TIP-SHORT | 8.1 | - |
| J460 | 1U3451/ 9W8451 |
TIP-SHORT | 10.5 | - |
| J550 | 1U3551/ 9W8551 |
TIP-SHORT | 16 | - |
| J200 | 1U3202 | TIP-LONG | 1.3 | - |
| J225 | 6Y3222 | TIP-LONG | 2.2 | - |
| J250 | 1U3252 | TIP-LONG | 3 | - |
| J300 | 1U3302 | TIP-LONG | 4.4 | CAT215 |
| J350 | 1U3352 | TIP-LONG | 6.5 | CAT225 |
| J400 | 7T3402 | TIP-LONG | 9.5 | CAT325(P/W : S290) |
| J460 | 1U3452/ 9W8452 |
TIP-LONG | 11.9 | CAT235 |
| J550 | 1U3552/ 9W8552 |
TIP-LONG | 18.3 | CAT245 |
| J600 | 6I6602 | TIP-LONG | 31.9 | - |
| J700 | 4T4702 | TIP-LONG | 41 | - |
| J250 | 9N4252 | TIP - HEAVY DUTY LONG |
3.8 | - |
| J300 | 9N4302 | TIP - HEAVY DUTY LONG |
5.8 | - |
| J350 | 9N4352 | TIP - HEAVY DUTY LONG |
8.8 | - |
| J400 | 8E4402 | TIP - HEAVY DUTY LONG |
11.5 | - |
| J450 | 9N4452 | TIP - HEAVY DUTY LONG |
16.3 | P/W : 240 |
| J550 | 9N4552 | TIP - HEAVY DUTY LONG |
26 | P/W : 245 |
| J600 | 7Y0602 | TIP - HEAVY DUTY LONG |
40.8 | - |
| J200 | 9J4203/ 4T2203 |
TIP-ABRASION | 1.5 | - |
| J250 | 9J4253/ 4T2253 |
TIP-ABRASION | 3.3 | - |
| J300 | 9J4303/ 4T2303 |
TIP-ABRASION | 5.2 | - |
| J350 | 9J4353/ 4T2353 |
TIP-ABRASION | 6.4 | - |
| J460 | 9J4453/ 9W1453 |
TIP-ABRASION | 13.1 | - |
| J550 | 9J4553/ 9W1553 |
TIP-ABRASION | 22 | - |
| J250 | 9N4253 | TIP - HEAVY DUTY ABRASION |
4.6 | - |
| J300 | 9N4303 | TIP - HEAVY DUTY ABRASION |
7.5 | - |
| J350 | 9N4353 | TIP - HEAVY DUTY ABRASION |
11 | - |
| J400 | 7T3403 | TIP - HEAVY DUTY ABRASION |
13 | - |
| J460 | 9N4453 | TIP - HEAVY DUTY ABRASION |
22.9 | - |
| J550 | 6Y2553 | TIP - HEAVY DUTY ABRASION |
30 | - |
| J200 | 1U3209 | TIP - PENETRATION |
1 | - |
| J250 | 9J4259 | TIP - PENETRATION |
2.6 | - |
| J300 | 9J4309 | TIP - PENETRATION |
4 | - |
| J350 | 9J4359 | TIP - PENETRATION |
6 | - |
| J400 | 6Y7409 | TIP - PENETRATION |
8.8 | - |
| J460 | 9J4459/ 9W8459 |
TIP - PENETRATION |
10.3 | - |
| J550 | 9J4559/ 9W8559 |
TIP - PENETRATION |
15 | - |
| J600 | 7I7609 | TIP - PENETRATION |
29.4 | - |
| J700 | 4T4709 | TIP - PENETRATION |
38 | - |
| J300 | 1U3302PT | TIP - PENETRATION ABRASION |
7.4 | - |
| J350 | 1U3352PT | TIP - PENETRATION ABRASION |
11.1 | - |
| J400 | 7T3402PT | TIP - PENETRATION ABRASION |
15.9 | - |
| J460 | 9W8452PT | TIP - PENETRATION ABRASION |
19.8 | - |
| J550 | 9W8552PT | TIP - PENETRATION ABRASION |
29.5 | - |
| J600 | 6I6603PT | TIP - PENETRATION ABRASION |
49.7 | - |
| J700 | 4T4703PT | TIP - PENETRATION ABRASION |
66.9 | LC700PT (4T4702PT) |
| J200 | 9W8209/ 1U3202TL |
TIP-TIGER | 1.2 | - |
| J250 | 9W8259/ 1U3252TL |
TIP-TIGER | 2.7 | - |
| J300 | 9W8309/ 1U3302TL |
TIP-TIGER | 4.2 | - |
| J350 | 9W2359/ 1U3352TL |
TIP-TIGER | 5.6 | - |
| J400 | 6Y5409/ 7T3402TL |
TIP-TIGER | 9.5 | - |
| J460 | 7T8459/ 1U3452TL |
TIP-TIGER | 12.5 | - |
| J550 | 9W6559/ 1U3552TL |
TIP-TIGER | 16.1 | - |
| J600 | 6I6602TL | TIP-TIGER | 35.6 | - |
| J200 | 101-0705/ 1U3202WT |
TIP - TWIN TIGER |
1.4 | - |
| J250 | 101-0707/ 1U3252WT |
TIP - TWIN TIGER |
3.6 | - |
| J300 | 101-0708/ 1U3302WT |
TIP - TWIN TIGER |
5.1 | - |
| J350 | 101-0709/ 1U3352WT |
TIP - TWIN TIGER |
7 | - |
| J400 | 101-0710/ 7T3402WT |
TIP - TWIN TIGER |
10 | - |
| J460 | 101-0711/ 1U3452WT |
TIP - TWIN TIGER |
14.5 | 9W8452WTL (138-6458) |
| J550 | 101-0712/ 1U3552WT |
TIP - TWIN TIGER |
18.4 | 9W8552WTL (138-6558) |
| J300 | GT30SYL/ 1U3302SY |
TIP-SYL | 5.5 | - |
| J350 | GT35SYL/ 1U3352SY |
TIP-SYL | 7.8 | - |
| J400 | GT40SYL/ 7T3402SYL |
TIP-SYL | 14.3 | - |
| J460 | GT45SYL/ 1U3452SY |
TIP-SYL | 15 | 9W8452SYL |
| J550 | GT55SYL/ 1U3552SY |
TIP-SYL | 22 | 9W8552SYL |
| J300 | 1U3302RC | TIP - ROCK CHISEL |
5.7 | - |
| J350 | 1U3352RC | TIP - ROCK CHISEL |
8.4 | - |
| J400 | 7T3402RC | TIP - ROCK CHISEL |
11 | - |
| J450 | 1U3452RC | TIP - ROCK CHISEL |
14.8 | - |
| J550 | 9W8552RC/ GT55HDP |
TIP - ROCK CHISEL |
23 | - |
| J300 | 4T2303RP2 | TIP - ROCK PENETRATION |
8.6 | - |
| J350 | 4T2353RP2 | TIP - ROCK PENETRATION |
11.9 | - |
| J460 | 9W1453RP2 | TIP - ROCK PENETRATION |
23 | - |
| J460 | 9W1453RP3 | TIP - ROCK PENETRATION |
24.4 | - |
| J550 | 9W1553RP2 | TIP - ROCK PENETRATION |
28.8 | - |
| J550 | 9W1553RP3 | TIP - ROCK PENETRATION |
29.6 | - |
| J250 | 3G8250 | TIP-WIDE | 3.4 | - |
| J350 | 107-3350 | TIP-WIDE | 8.2 | 8J3350 |
| J400 | 7T3400 | TIP-WIDE | 12 | - |
| J460 | 107-3450/ 8J1450 |
TIP-WIDE | 16.2 | - |
| J250 | 1U1857 | MONOBLOCK TOOTH - CENTER |
10 | - |
| J350 | 1U1879 | MONOBLOCK TOOTH - CORNER |
24.3 | - |
| D4 | 6Y0309 (9J8910) |
RIPPER TIP (PENETRATION LONG) |
5.7 | - |
| D5, D6, D7 | 6Y0352 | RIPPER TIP (CENTERLINE) |
10.8 | - |
| D5, D6, D7 | 6Y0359 (9J8920) |
RIPPER TIP (PENETRATION LONG) |
11.5 | - |
| D8 | 9W2451 | RIPPER TIP (SHORT) |
16.1 | - |
| D8 | 9W2452 | RIPPER TIP (CENTERLINE) |
18.4 | - |
| D8, D9 | 4T4453 | RIPPER TIP | 19.6 | - |
| D8, D9 | 4T5452 | RIPPER TIP (PENETRAION MEDIUM) |
16.7 | 9N RIPPER TIP |
| D8, D9 | 4T5452H | RIPPER TIP (PENETRAION MEDIUM) |
21.2 | - |
| D9R, D10 | 4T4501 | RIPPER TIP (SHORT) |
27.5 | - |
| D9R, D10 | 4T5502 | RIPPER TIP (MEDIUM) |
32.7 | - |
| D9R, D10 | 4T5503 (366108) |
RIPPER TIP (LONG) |
34.2 | 10N RIPPER TIP |
| D9R, D10 | 4T5503H | RIPPER TIP (LONG) |
39.3 | - |
| D11 | 6Y3552 | RIPPER TIP (PENETRAION MEDIUM) |
51.3 | 11N RIPPER TIP |
| D4, 963 | 9J6586 | RIPPER SHANK | 23.8 | - |
| D9L, D10, D11 |
103-8114 | RIPPER NOSE (1pin Protector) |
50 | - |
| D9L, D9R, D10, D11 |
103-8115 | RIPPER SHANK (2pin Protector) |
81 | - |
| D8,D8N/R/L, D9,D9N/R |
6J8814 | SHANK PROTECTOR - STANDARD |
14.5 | - |
| D9L,D9R, D10N, D10R | 9W8365 | SHANK PROTECTOR - SHARP |
41.1 | - |
| D9L,D10,D10N, D11, D11N |
1U3644 | SHANK PROTECTOR | 40.3 | - |
| J200 | 1193204 | CENTER WN | 1.7 | - |
| J220 | 6Y3224 | CENTER WN | 2.8 | - |
| J250 | 6Y3254 | CENTER WN | 4.2 | - |
| J250 | 6Y3254HD | CENTER WN | 4.1 | - |
| J300 | 9W1304 | CENTER WN | 7 | - |
| J300 | 8E9490 | CENTER WN | 8.2 | - |
| J300 | 3G6304HD | CENTER WN | 7.2 | - |
| J350 | 3G8354HD | CENTER WN | 9 | - |
| J350 | 113-0354 | CENTER WN | 10.7 | - |
| J350 | 113-0355 | LH | 10.8 | - |
| J350 | 113-0356 | RH | 10.8 | - |
| J400 | 6I6404 | CENTER WN | 13.8 | - |
| J460 | 6I6464 | CENTER WN | 19.3 | - |
| J460 | 8E6464 | CENTER WN | 16.8 | - |
| J460 | 114-0464 | CENTER WN | 21 | - |
| J460 | 114-0465 | LH | 22.4 | - |
| J460 | 114-0466 | RH | 22.4 | - |
| J550 | 6I6554 | CENTER WN | 33 | - |
| J550 | 1U1553 | CENTER WN (60mm lip) |
28.9 | - |
| J600 | 6I6604 | CENTER WN | 54.8 | - |
| J700 | 4T4704 | CENTER WN | 74.2 | - |
| J200 | 4T1204 | FLUSH M.WN | 2 | - |
| J250 | 1U1254 | FLUSH M.WN | 5.6 | - |
| J300 | 1U1304 | FLUSH M.WN | 8 | - |
| J350 | 1U1354 | FLUSH M.WN | 14.9 | - |
| J460 | 8E0464 | FLUSH MOUNT WN CENTER |
23.4 | - |
| J460 | 8E0465 | FLUSH MOUNT WN CORNER RH |
23.3 | - |
| J460 | 8E0466 | FLUSH MOUNT WN CORNER LH |
23.3 | - |
| J550 | 3G9494 | ADAPTER FOR BACKHOE LOADER |
30.4 | - |
| J200 | 8J7525 | BOTTOM S. CENTER WN |
1.4 | - |
| J200 | 8J7525HD | BOTTOM S. CENTER WN |
1.4 | - |
| J250 | 3G0169 | BOTTOM S. CENTER WN |
4.1 | - |
| J300 | 9J8929 | BOTTOM S. CENTER WN |
8 | - |
| J350 | 1U1350 | BOTTOM S. CENTER WN |
9.5 | - |
| J350 | 1U1351 | BOTTOM S. LH |
10.6 | - |
| J350 | 1U1352 | BOTTOM S. RH |
10.6 | - |
| J250 | 1U0257 | 2 BOLT CENTER |
8.1 | - |
| J300 | 1U0307 | 2 BOLT CENTER |
10.8 | - |
| J300 | 4T4307 | 2 BOLT CENTER |
12.6 | - |
| J300 | 3G9307 | 2 BOLT CENTER |
14.7 | - |
| J350 | 3G3357 | 2 BOLT CENTER (43mm Lip) |
17 | - |
| J350 | 1U1357(3G1357) | 2 BOLT CENTER (46mm Lip) |
19.8 | - |
| J250 | 3G4258 | CORNER ADAPTERS LH |
10.2 | - |
| J250 | 3G4259 | CORNER ADAPTERS RH |
10.2 | - |
| J300 | 3G4308 | CORNER ADAPTERS LH |
15.1 | - |
| J300 | 3G4309 | CORNER ADAPTERS RH |
15.1 | - |
| J350 | 3G5358 | CORNER ADAPTERS LH |
20 | - |
| J350 | 3G5359 | CORNER ADAPTERS RH |
20 | - |
| J300 | 8E5308 | CORNER ADAPTERS LH |
20 | - |
| J300 | 8E5309 | CORNER ADAPTERS RH |
20 | - |
| J350 | 8E5358 | CORNER ADAPTERS LH |
29 | - |
| J350 | 8E5359 | CORNER ADAPTERS RH |
29 | - |
| E200B | SIDE CUTTER | 1.2 | - | |
| CAT330 | SIDE CUTTER | 1.2 | - | |
| D4, D5, D6 | 4T3051 | FINISH DOZING(RH) |
9 | - |
| D4, D5, D6 | 4T3052 | FINISH DOZING(LH) |
9 | - |
| D6 | 3G8319 | GENERAL DUTY (RH) | 19 | - |
| D6 | 3G8320 | GENERAL DUTY (RH) |
19 | - |
| D8 | 3G8301 | GENERAL DUTY (RH) |
34.5 | - |
| D8 | 3G8302 | GENERAL DUTY (RH) |
34.5 | - |
| 1U0740 | SIDEBAR PROTECTOR |
23.2 | - | |
| 9F5124 | SHANK | 5.6 | - | |
| 2D5572(6Y5230) | SCARIFIER TIP | 1.5 | - | |
| 5B6251 | SHANK | 5.6 | - | |
| 4J8665 | ROUTER BIT - STANDARD |
25 | - | |
| 4T0668 | ROUTER BIT - HEAVY DUTY |
40.2 | - | |
| 4V3851 | WELD ON - ROCK |
4.4 | - | |
| 2V7053 | WELD ON | 3.7 | - | |
| 2V6628 | WELD ON | 5.4 | - | |
| 4V0668 | WELD ON - ROCK |
7.5 | - | |
| 8K9189 | 2BOLT ON | 3.5 | - | |
| 8K9171 | 2BOLT ON | 6.4 | - | |
| 7K2939 | WELD ON - ROCK |
6.7 | - | |
| J225 | 6Y3228 | PIN | 0.1 | - |
| J250 | 8E6258 | PIN | 0.2 | - |
| J300 | 9J2308 | PIN | 0.2 | - |
| J350 | 8E6358 | PIN | 0.23 | - |
| J350 | 9W2678/ 9J2358 |
PIN | 0.23 | - |
| J400 | 7T3408 | PIN | 0.35 | - |
| J450 | 6Y2527/ 4T1458 |
PIN | 0.28 | - |
| J460 | 8E0468 | PIN | 0.46 | - |
| J550 | 6Y8558/ 1U1558 |
PIN | 0.64 | - |
| J600 | 113-9608 | PIN | 0.5 | 2.1 |
| J225/J250/300 | 8E6259 | RETAINER | 0.02 | - |
| J350 | 8E6359 | RETAINER | 0.05 | - |
| J400 | 8E8409 | RETAINER | 0.06 | - |
| J460 | 8E8469 | RETAINER | 0.06 | - |
| J550 | 8E5559 | RETAINER | 0.1 | - |
| J600 | 113-9609 | WASHER | 0.1 | 0.9 |
| PC60 | 20X-70-14160 | TIP - LONG | 2.5 | - |
| PC100 | 202-70-12130 | TIP - LONG | 4.1 | - |
| PC200 | 205-70-19570 | TIP - LONG | 4.4 | - |
| PC200 | 205-70-19570RC | TIP - ROCK CHISEL |
5.4 | - |
| PC200 | 205-70-19570RE | TIP - ROCK EXPLODER |
6.3 | - |
| PC200 | 205-70-19570TL | TIP - TIGER | 5.1 | - |
| PC300 | 207-70-14151 | TIP - LONG | 6.5 | - |
| PC300 | 207-70-14151RC | TIP - ROCK CHISEL |
10.3 | - |
| PC300 | 207-70-14151RE | TIP - ROCK EXPLODER |
10 | - |
| PC300 | 207-70-14151TL | TIP - TIGER | 7.2 | - |
| PC400 | 208-70-14270 | TIP - LONG | 13.7 | - |
| PC400 | 208-70-14270RC | TIP -ROCK CHISEL |
16.7 | - |
| PC400 | 208-70-14270TL | TIP -TIGER | 13 | - |
| PC400/PC450 | 208-70-14152 | TIP - SHORT | 10.1 | - |
| PC650 | 209-70-54210 | TIP - LONG | 28.9 | - |
| PC650 | 209-70-54210RC | TIP - ROCK CHISEL |
31.1 | - |
| PC700/710/ 800 |
209-70-54710L | TIP - LONG | 32.7 | - |
| PC1250 | 21N-72-14290 | TIP - LONG | 43.7 | - |
| PC60-5 | 20X-70-23160 | TIP VERTICAL | 2.1 | - |
| PC100 | 203-70-43180 | TIP VERTICAL | 2.4 | - |
| PC200 | 205-70-74272 | TIP VERTICAL | 4.2 | - |
| PC220/300 | 207-70-34212 | TIP VERTICAL | 5.8 | - |
| WA500 | 427-70-13731 | TIP - ABRAISION | 31.4 | - |
| WA800 | 427-70-13780 | TIP - ABRAISION | 51.5 | - |
| WA200-1/-3 | 418-70-13151 | TOOTH | 7.7 | - |
| WA350/400/450 | 423-70-13144 | TOOTH (LH) | 25 | - |
| WA350/400/450 | 423-70-13154 | TOOTH (RH) | 25 | - |
| D65 | 141-78-11253 | TIP - RIPPER | 12.2 | - |
| D155 | 175-78-31230 | TIP - RIPPER | 14.5 | - |
| D355 | 195-78-21331 | TIP - RIPPER | 18.4 | - |
| D375 | 195-78-71320 | TIP - RIPPER | 27.1 | - |
| PC60 | 20X-70-14151 | ADAPTER (SIDE PINNED) |
3.1 | - |
| PC100 | 20E-70-K2460 | ADAPTER (SIDE PINNED) |
3.3 | - |
| PC100-1 | 202-70-12140 | ADAPTER (SIDE PINNED) |
7.1 | - |
| PC200-5 | 205-939-7120 | ADAPTER (SIDE PINNED) |
6.7 | - |
| PC220-5 | 206-939-5120 | ADAPTER (SIDE PINNED) |
10.9 | - |
| PC300-5 | 207-939-3120 | ADAPTER (SIDE PINNED) |
10.4 | - |
| PC400-5 | 208-939-3120 | ADAPTER (SIDE PINNED) |
19.4 | - |
| PC650/700 | 209-70-74140 | ADAPTER (SIDE PINNED) |
46.6 | - |
| PC1000 | 21N-70-14140 | ADAPTER (SIDE PINNED) |
74.2 | - |
| WA700/800 | 427-70-13743 | ADAPTER (SIDE PINNED) |
43.3 | - |
| PC50 | 20U-70-13241/51 | SIDE CUTTERS | 3.4 | - |
| PC60 | 201-70-74171/81 | SIDE CUTTERS | 5.9 | - |
| PC100 | 202-70-12130/40 | SIDE CUTTERS | 4.1 | - |
| PC200-5 | 205-70-74180/90 | SIDE CUTTERS | 14.7 | - |
| PC300 | 207-70-34160/70 | SIDE CUTTERS | 17.9 | - |
| PC400 | 208-70-34160/70 | SIDE CUTTERS | 23.4 | - |
| D85 | 150-70-21346 | END BIT | 24 | - |
| D85 | 150-70-21356 | END BIT | 24 | - |
| D155 | 175-71-22272 | END BIT | 36 | - |
| D155 | 175-71-22282 | END BIT | 36 | - |
| D355 | 195-71-11183 | END BIT | 62 | - |
| D355 | 195-71-11173 | END BIT | 62 | - |
| 58-18 | ADAPTER | 2.7 | - | |
| 1617-18 | ADAPTER | 2.2 | 18S | |
| 23574-22 | ADAPTER | 2.9 | 20S | |
| 23-25 | ADAPTER | 4 | 25S | |
| 25-30 | ADAPTER | 7.5 | 30S | |
| 157-35 | ADAPTER | 10.1 | 35S | |
| 56-40 | ADAPTER | 12.9 | 40S | |
| 5512T-45 | ADAPTER | 21 | - | |
| 18-20PN | LOCK PIN | 0.1 | - | |
| 22PN | LOCK PIN | 0.1 | - | |
| 25-30PN | LOCK PIN | 0.1 | - | |
| 35PN | LOCK PIN | 0.2 | - | |
| 40PN | LOCK PIN | 0.2 | - | |
| 45PN | LOCK PIN | 0.3 | - | |
| 18-20LK | RUBBER LOCK | 0.1 | - | |
| 22LK | RUBBER LOCK | 0.1 | - | |
| 25-30LK | RUBBER LOCK | 0.1 | - | |
| 35-40LK | RUBBER LOCK | 0.1 | - | |
| 45LK | RUBBER LOCK | 0.1 | - | |
| EX40/50 | 4245518/ 4339864 |
ADAPTER | 2 | - |
| EX40/50 | 4080730/ 4339865 |
TIP | 1.1 | - |
| EX40/50 | 4080731/ 4339868 |
LOCK PIN | 0.1 | - |
| EX40/50 | 4080731 | RUBBER LOCK | 0.1 | - |
| EX60/75 | 4135495/ 4364685 |
ADAPTER | 3.4 | 22S |
| EX60/75 | 4135496/ 4364686 |
TIP | 1.5 | 22S |
| EX60/75 | 4135497/ 4364687 |
LOCK PIN | 0.1 | 22PN |
| EX60/75 | 4135498/ 4364688 |
RUBBER LOCK | 0.1 | 22LK |
| EX100/120/ 130/150 |
4188013/ 4339520 |
ADAPTER | 6.9 | - |
| EX100/120/ 130/150 |
Z963228 | TIP | 2.8 | 30S |
| EX100/120/ 130/150 |
Z963229/ 4506257 |
LOCK PIN | 0.1 | 25-30PN |
| EX100/120/ 130/150 |
Z963227 | RUBBER LOCK | 0.1 | 25-30LK |
| EX100/120/ 130/150 |
2015428 | SIDE CUTTER LH |
9.8 | EX100 S/C |
| EX100/120/ 130/150 |
2015429 | SIDE CUTTER RH |
9.8 | EX100 S/C |
| EX200 | 4187940/ 4326641 |
ADAPTER | 7 | - |
| EX200/ZX230 | 4501629/ 4326640 |
TIP | 4.7 | 35S |
| EX200 | 4501627/ 4326643 |
LOCK PIN | 0.11 | 35PN |
| EX200 | 4501625/ 4326642 |
RUBBER LOCK | 0.02 | 35-40LK |
| EX200 | 2014503 | SIDE CUTTER LH |
13.7 | S220 S/C |
| EX200 | 2014504 | SIDE CUTTER RH |
13.7 | S220 S/C |
| EX300 | 4195699 | ADAPTER | 12 | - |
| EX300/ZX330 | 4512365/ 4326644 |
TIP | 7.3 | 40S |
| EX300 | 4512366/ 4326646 |
LOCK PIN | 0.2 | 40PN |
| EX300 | 4501625/ 4326642 |
RUBBER LOCK | 0.1 | 35-40LK |
| EX300 | 2021232 | SIDE CUTTER LH |
17.2 | S280 S/C |
| EX300 | 2021233 | SIDE CUTTER RH |
17.2 | S280 S/C |
| EX400 | 4153602 | ADAPTER | 21 | - |
| EX400 | 4153603 | TIP | 8.4 | 45S |
| EX400 | Z968489 | LOCK PIN | 0.3 | 45PN |
| EX400 | Z968490 | RUBBER LOCK | 0.3 | 45LK |
| EX400 | 1010517 | SIDE CUTTER LH |
26 | S450 S/C |
| EX400 | 1010518 | SIDE CUTTER RH |
26 | S450 S/C |
| V19SYL | TOOTH SUPER V SYL |
2.5 | - | |
| V23SYL | TOOTH SUPER V SYL |
3.4 | - | |
| V29SYL | TOOTH SUPER V SYL |
5 | - | |
| V33SYL | TOOTH SUPER V SYL |
7.1 | - | |
| V39SYL | TOOTH SUPER V SYL |
9.6 | - | |
| V43SYL | TOOTH SUPER V SYL |
13.5 | - | |
| V51SYL | TOOTH SUPER V SYL |
15.2 | - | |
| V61SYL | TOOTH SUPER V SYL |
24.9 | - | |
| V69SYL | TOOTH SUPER V SYL |
39 | - | |
| V33SD | TOOTH SUPER V SD |
6.9 | - | |
| V39SD | TOOTH SUPER V SD |
10.4 | - | |
| V43SD | TOOTH SUPER V SD |
14.7 | - | |
| V51SD | TOOTH SUPER V SD |
15.7 | - | |
| V61SD | TOOTH SUPER V SD |
26.8 | - | |
| V69SD | TOOTH SUPER V SD |
39 | - | |
| V19PN | PIN ASSY | 0.1 | - | |
| V23PN | PIN ASSY | 0.1 | - | |
| V29PN | PIN ASSY | 0.2 | - | |
| V33PN | PIN ASSY | 0.2 | - | |
| V39PN | PIN ASSY | 0.2 | - | |
| V43PN | PIN ASSY | 0.3 | - | |
| V51PN | PIN ASSY | 0.3 | - | |
| V61PN | PIN ASSY | 0.4 | - | |
| V69PN | PIN ASSY | 0.5 | - | |
| HE50 | 23A90800 | TIP | 1.1 | S55-V |
| HE130 | 52A026000 | TIP | 4.2 | HE130 |
| HE220 | 43A129000 | TIP | 6 | HE220 |
| HE280 | 4413A0333000 | TIP | 7.3 | 235 |
| HE360 | 4512365A | TIP | 8.7 | HE360 |
| HE450 | TIP | 1.2 | HE450 | |
| HE50 | 23A090800 | ADAPTER | 2 | 2 |
| HE130 | 52A025000 | ADAPTER | 4.2 | HE130 |
| HE220 | 43A1032000 | ADAPTER | 6 | HE220 |
| HE280 | 4413A0334000 | ADAPTER | 12.2 | 235 |
| HE360 | 4195699A | ADAPTER | 8.7 | HE360 |
| HE280 | 4413A0331000 | SIDE CUTTER LH |
20 | - |
| HE280 | 4413A0332000 | SIDE CUTTER RH |
20 | - |
| HE360 | 702A40040 | SIDE CUTTER LH |
17.2 | - |
| HE360 | 702A40050 | SIDE CUTTER RH |
17.2 | - |
| FR130 (FR10B, HA100) |
430100111-02 | CO-TOOTH | 10.4 | - |
| FR130 (FR10B, HA100) |
430100150-02 | LH-TOOTH | 13.3 | - |
| FR130 (FR10B, HA100) |
430100149-02 | RH-TOOTH | 13.3 | - |
| FR160 (FR15B, HA290) |
439104351 | CE-TOOTH | 10.3 | - |
| FR160 (FR15B, HA290) |
439104353 | LH-TOOTH | 16.4 | - |
| FR160 (FR15B, HA290) |
439104352 | RH-TOOTH | 16.4 | - |
| FR220 (FR20B, HA380) |
430100383 | CE-TOOTH | 17.2 | - |
| FR220 (FR20B, HA380) |
439302883 | LH-TOOTH | 24.5 | - |
| FR220 (FR20B, HA380) |
439302882 | RH-TOOTH | 24.5 | - |
| Brand | Model |
| Caterpillar | J200 - J700, All kinds of ripper Tips, Cutting Edge and End Bit, etc |
| Komatsu | PC30 - PC1250, D60 - D375 Ripper tip, Cutting Edge and End Bit, etc |
| Doosan (Daewoo) | All kinds of GET for Doosan (Daewoo) |
| Hyundai | All kinds of GET for Hyundai |
| Volvo (Samsung) | All kinds of GET for Volvo (Samsung, domestic application) |
| Hitachi, Kobelco | 18S - 45S (Conical tip) |
| Hensley | X156 - X600RS2 |
| H & L | 23ST - 240 |
| Etc | JCB (Backhoe Loader), Bofors |
The brand names such as Hyundai, Doosan, Volvo, Cat, Caterpillar, Case, John Deere, Komatsu, Hitachi, JCB, Atlac Copco, Sandvik, Tamrock, Furukawa, Toyo, Ingersoll Rand, or any others are registered trademarks of the respective original manufacturers. All names, descriptions, numbers and symbols are used for reference purposes only.
